Ruger MKII Dis/Re-assembly Instructions

Back to Ruger MKII Stuff

For all those people who say it is so hard, a video clip... 30 seconds...

the same clip without the annotations:
MPEG format 5.4 Megs
AVI format 4 Megs

Detailed steps here
Disassembly:
Verify empty chamber
Point in safe direction, pull trigger

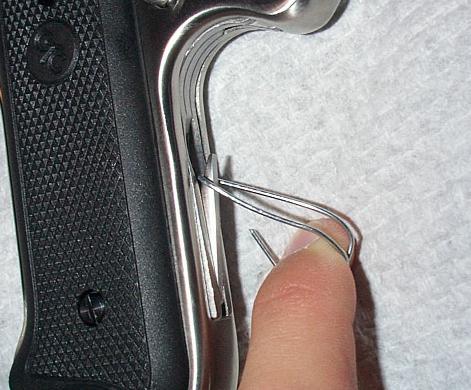

Pull out main spring catch

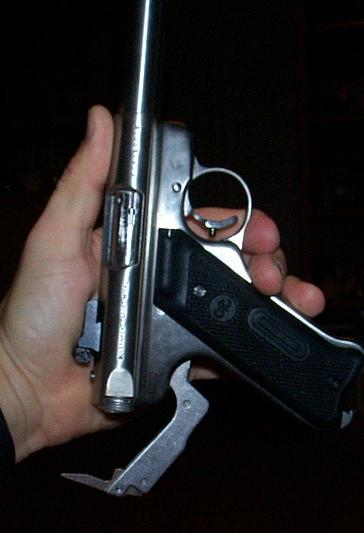

Pull main spring down

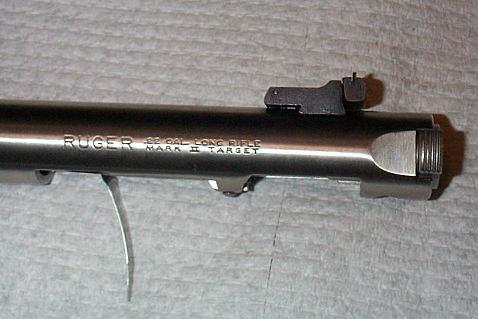

Slide receiver forward
Slide bolt out the rear


Assembly:

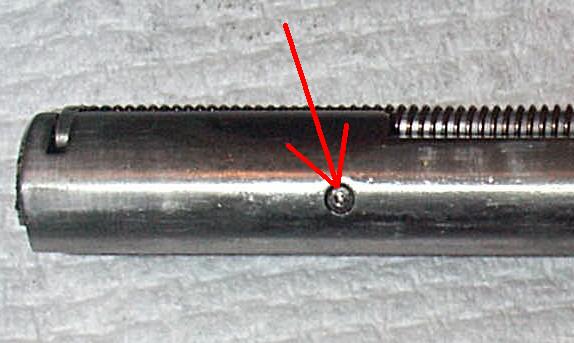

Insure pin is in bolt
Slide bolt into receiver
Slide receiver to the rear

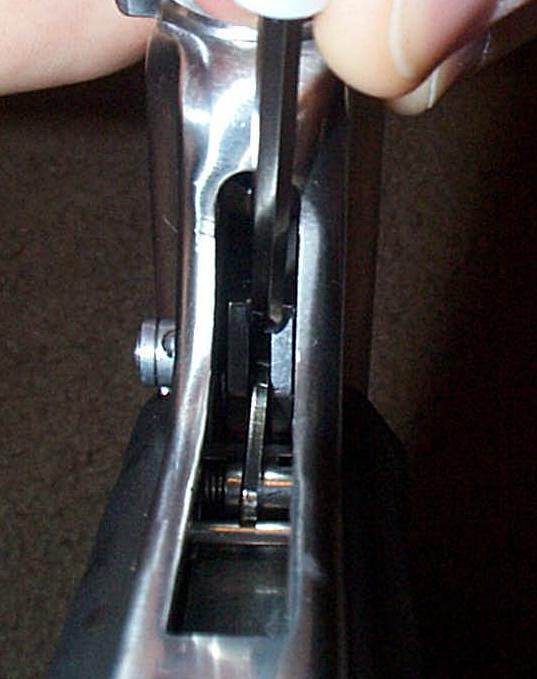

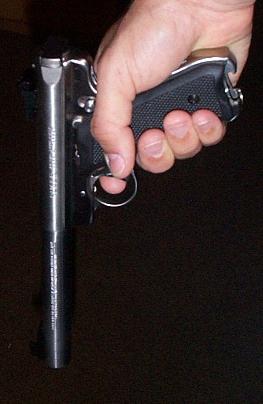

Point down, pull trigger, push hammer forward
Push Main spring housing up
Point in the air

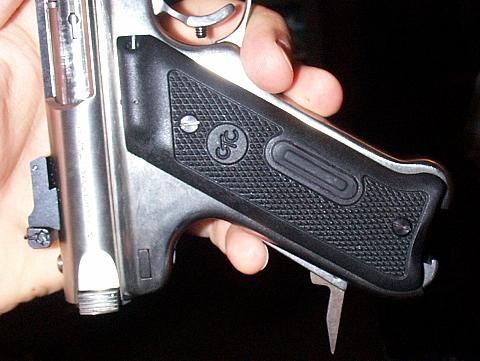

Swing main Spring Housing closed
Lock Main spring housing
